PULJAK REPAIR & REBUILDING INSTRUCTIONS

• Remove rod & handle casting from workhead.  Remove old cams & springs.
• Compress new springs on each side with pliers and wrap with 10 turns of scotch tape to securely hold in the compressed position.
• Place new cams and springs in the cavity as illustrated to the right.  Break scotch tape with a screwdriver pushed through the rod hole.  Make certain that springs are seated properly and centered in recess.
• Insert PULJAK rod from each end to test for alignment of all internal parts.  Both cams should move smoothly against spring.
• Reassemble handle casting with a notch over the ear of a small cam.
• File off heavy ridges on the rod and replace in PULJAK

STRETCHING, PULLING & ALIGNING USING A PULJAK

• With a tension bar in the fence, (using ‘Type A’ PULJAK) hook the puller to your tension bar.
• Place workhead around the fence post.
• Pump handle, drawing fence into desired clamping position.
• When using ‘Type B’ PULJAK, hook stretcher studs into fence fabric and proceed as above.
• NOTE: To release tension….depress the trigger cam.

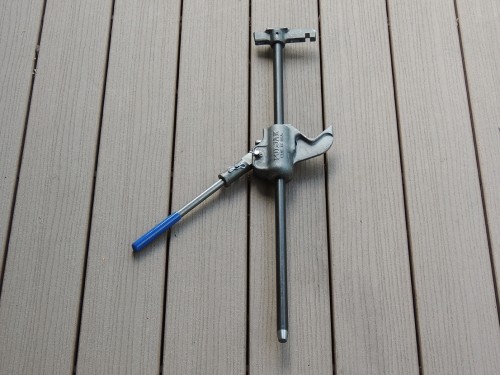

C-S PULJAK

A4 PULJAK

Spring Compressor Pliers:
​$60.00

LIFTING & PUSHING WITH A PULJAK

• Depress the trigger cam and slide worked off the rod.
• Reverse workhead so “post notch” faces away from the puller
• Reassemble to rod
• DO NOT move the handle while the rod is removed!
